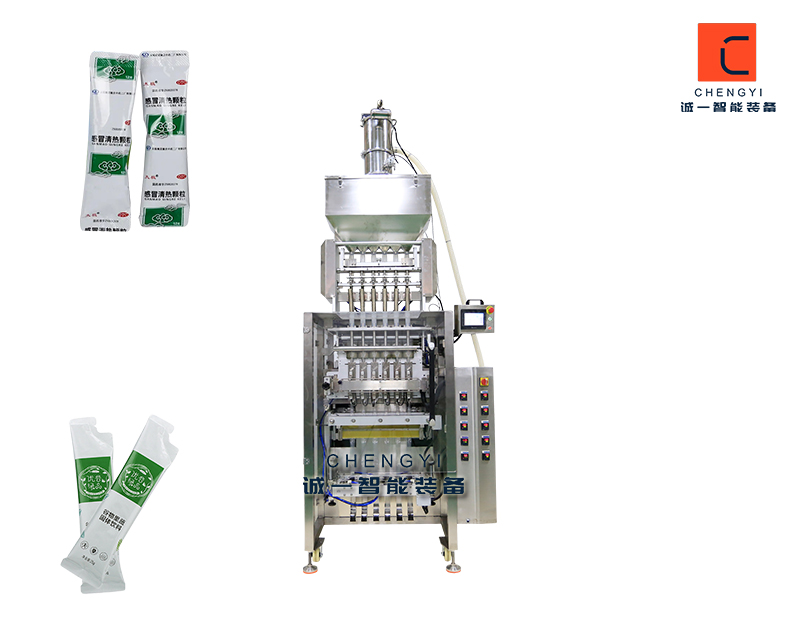

  • 20230911030809172

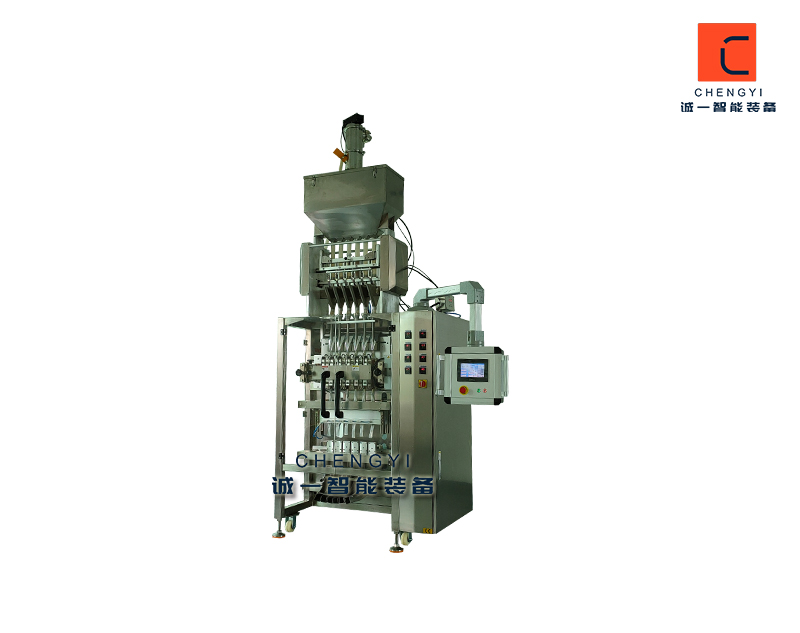

  • 20230911030809467

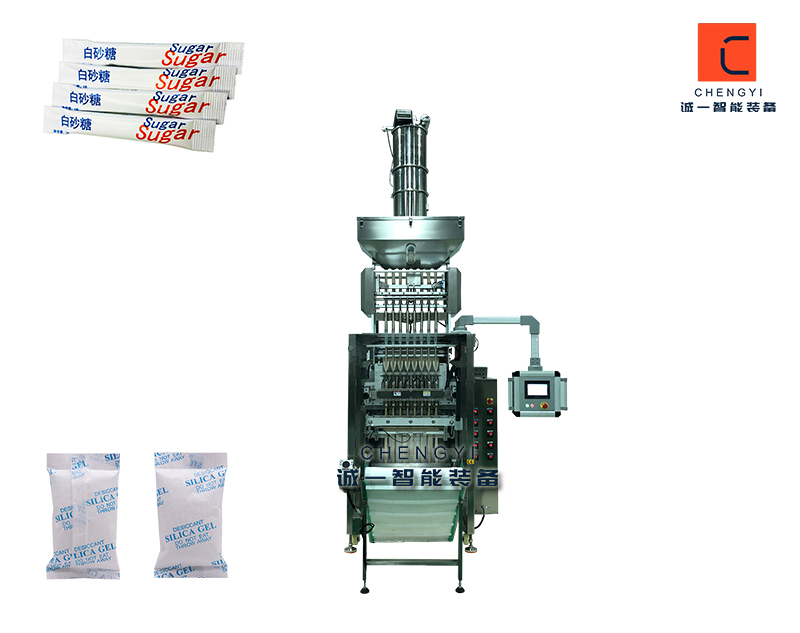

Multi column back sealed granule packaging machine

Product model:CY300BK/CY600BK/CY900BK


  Lanes number:2-18 lanes

  Capacity:30--50 / Max.30-50cycle/min/lane

  Bag size:L:50-180mm W:17-105mm

  Film width&thickness:Max.300-900mm,0.07--0.1mm

  Measuring Method:1、Vomuletric cup;2、weigher

  Sealing type:Back sealing/stick bag

  Cutting type:1、Straight cutting;2、Zig zag cutting 3、Round cutting;4、Die-cut

  Power supply:1N+PE/50HZ/AC220V/380V/3.5kw

  Air consumption:0.8 MPA 0.8m3/min

  Dimension:1385*918*2005mm

  Weight:400-950kg

  The multi column back sealing particle packaging machine is suitable for granular products in industries such as medicine, food, daily chemicals, pesticides, and health products, such as sugar, coffee, seasoning, desiccants, salt, laundry detergent, activated carbon, pharmaceutical particles, granules, etc.


We can help you find the goods you want by phone


video

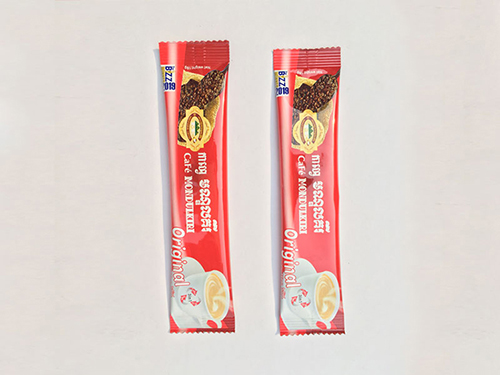

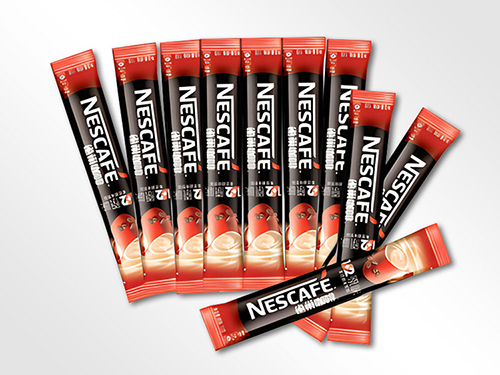

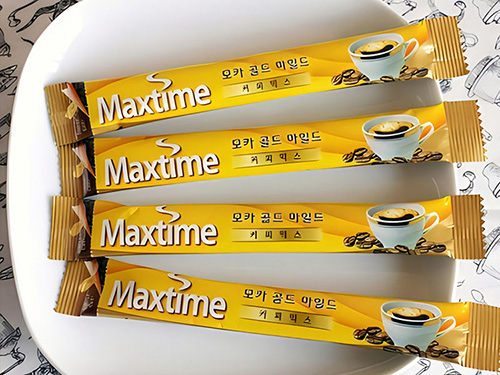

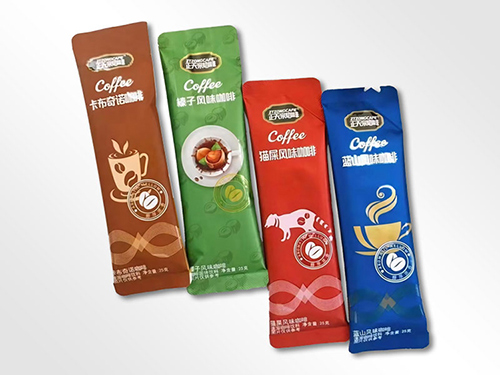

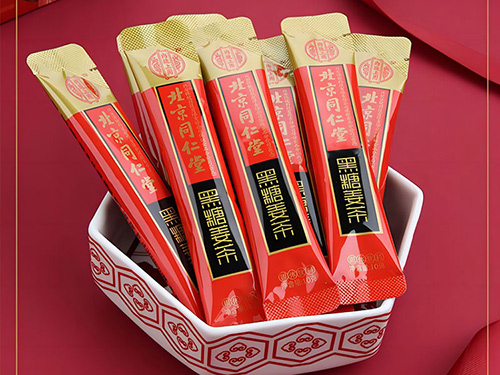

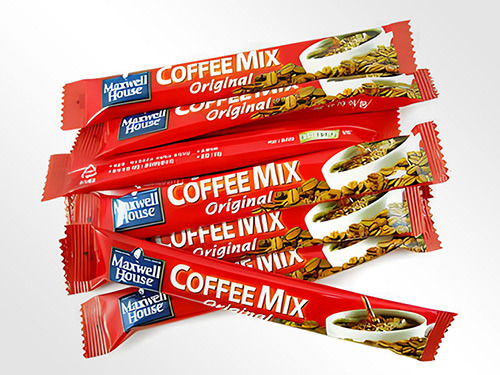

Packaging sample bag

Parameters
Model CY300BK CY600BK CY900BK
Lanes 2-4 lanes 3-10 lanes 4-16 lane
Capacity 30--50 Bags/Lane/Min
Bag width 17-70mm 17-95mm 17-105mm
Bag length 50-180mm
Film width Max.300mm Max.600mm Max.900mm
Measuring Vomuletric cup/weigher
Sealing type Back seal
Cutting type Straight cutting/Zig zag cutting/Round cutting/Die-cut
Power supply 50HZ/AC220V/3.5kw 50HZ/AC220V/5.5kw 50HZ/AC220V/7.5kw
Air consumption 0.8 MPA 0.8m3/min
Dimension 1900*1440*3130mm 1860*1750*3300mm 1860*2050*3375mm
Weight 900kg 1100kg 1400kg

Details

Electric box

Machine side

Machine Side 1

Front of the machine

Measuring cup measuring system (1)

Bucket

Blanking hose channel

Vacuum feeding
