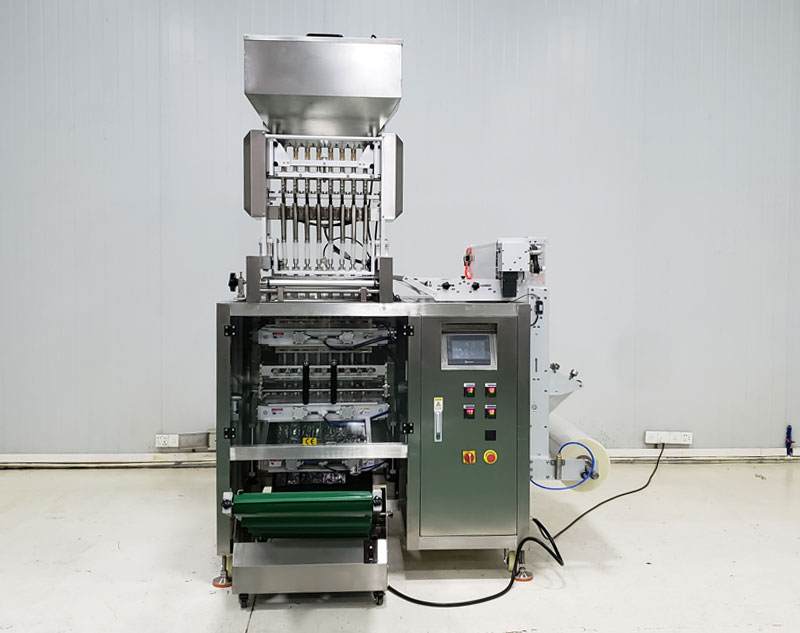

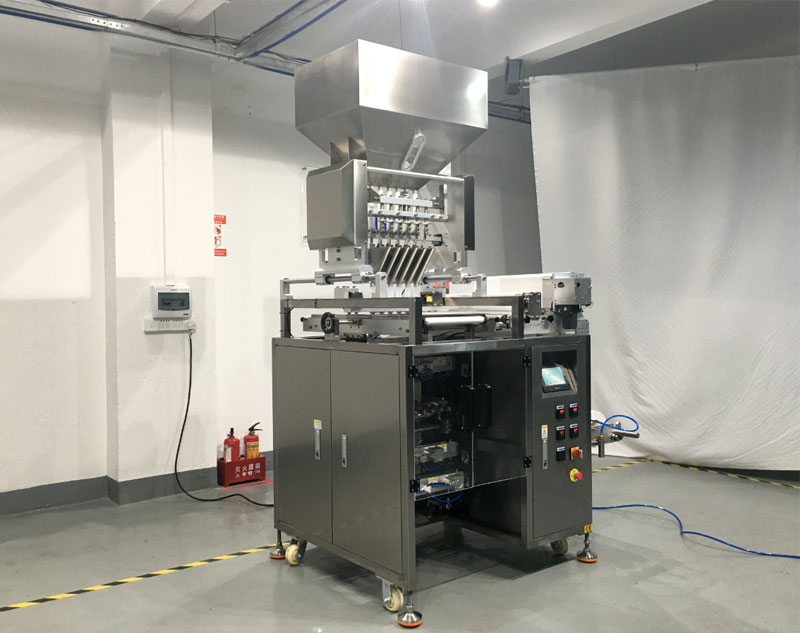

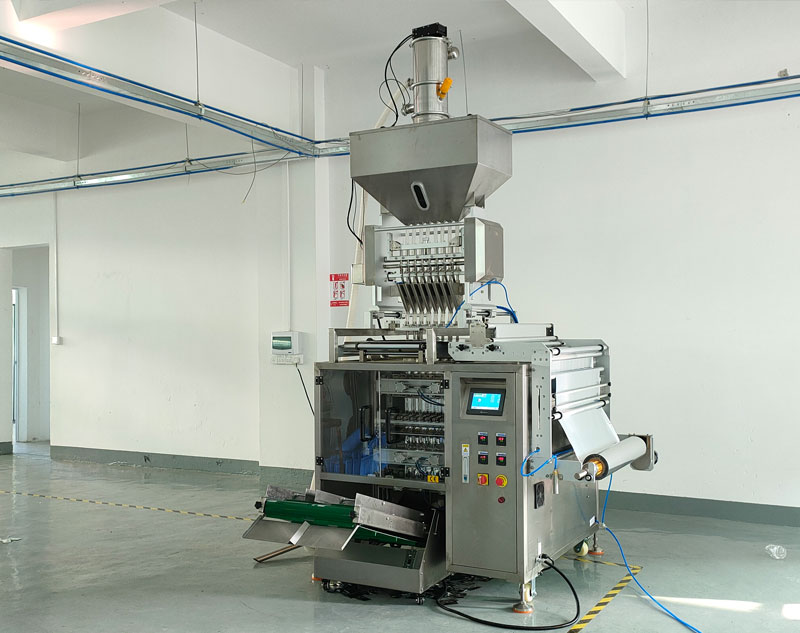

Multi row four side sealing granule packaging machine

Product model：CY500K/CY700K/CY980K/CY1200K

Suitable for granules
used in medicine, food, daily chemical, pesticide, health products and other industriesProducts such as sugar, coffee, seasoning, desiccant, salt, washing powder, activated carbon, medicine granules, granules, etc.


We can help you find the goods you want by phone

Consult immediately 18676947539
Machine parameters
    Model CY500K CY700K CY980K CY1200K
    Lanes number 2-6 lanes 3-8 lanes 4-12 lane 5-14 lane
Capacity  25--40 /  Max.25-40cycle/min/lane
Bag size L 45-160mm  W:50-125mm L 45-160mm  W:50-125mm L 45-160mm  W:50-125mm L 45-160mm  W:50-125mm
Film width&thickness Max.500mm,0.07--0.1mm Max.700mm,0.07--0.1mm Max.980mm,0.07--0.1mm Max.1200mm,0.07--0.1mm
Measuring Method 1.Vomuletric cup;2. weigher
Sealing type  4 sides sealing  4 sides sealing  4 sides sealingg  4 sides sealing
Cutting type 1.平口 Straight cutting;2. Zig zag cutting ;3 Continuous Cutting
Power supply 1N+PE/50HZ/AC220V/380V/2.8kw 1N+PE/50HZ/AC220V/380V/4.1kw 1N+PE/50HZ/AC220V/380V/5.5kw 1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min
Dimension 950*1470*1750mm 1153*1654*1750mm 1415*1686*2130mm 2220*2210*2600mm
Weight 400kg 550kg 650kg 900kg
Machine details

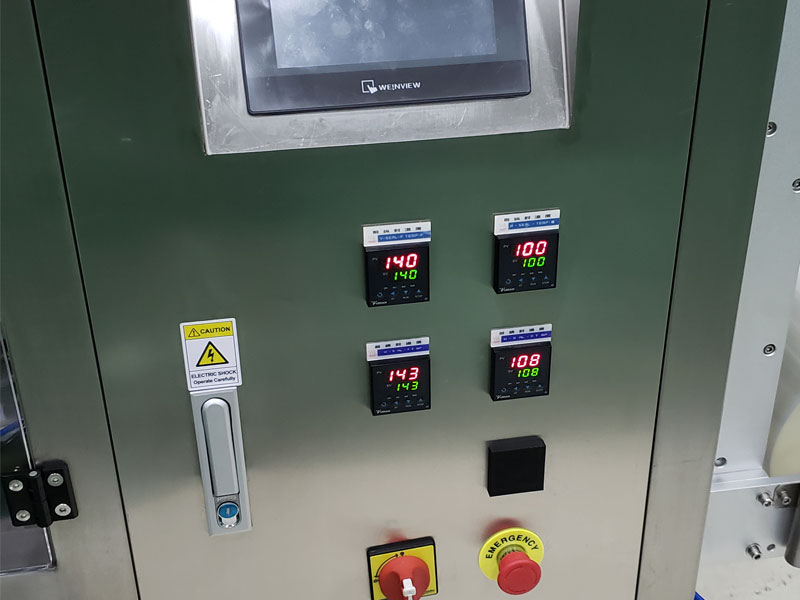

Touch screen and temperature control system

Code printer system

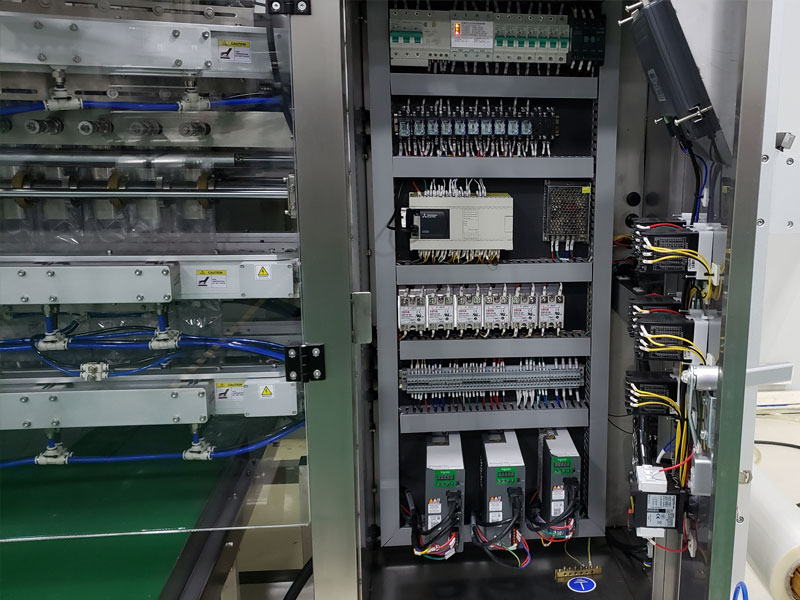

Electric box

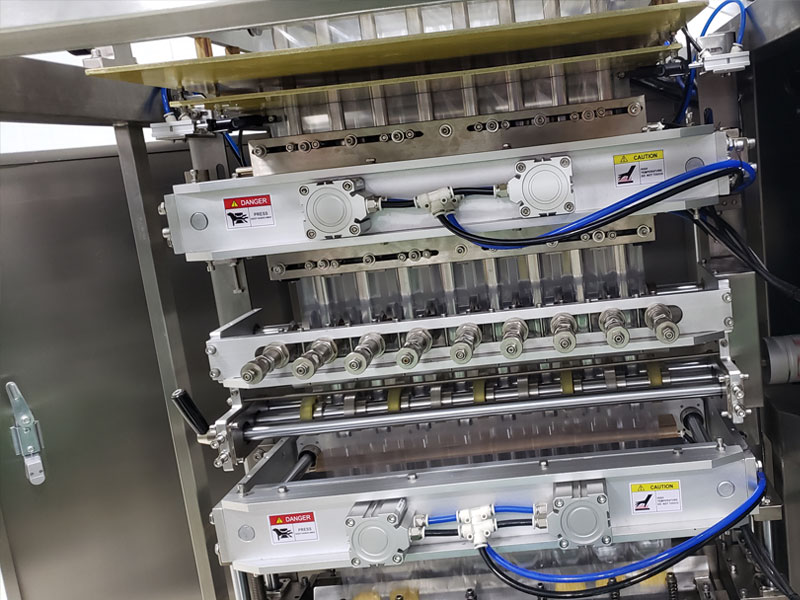

Horizontal sealing and vertical sealing system

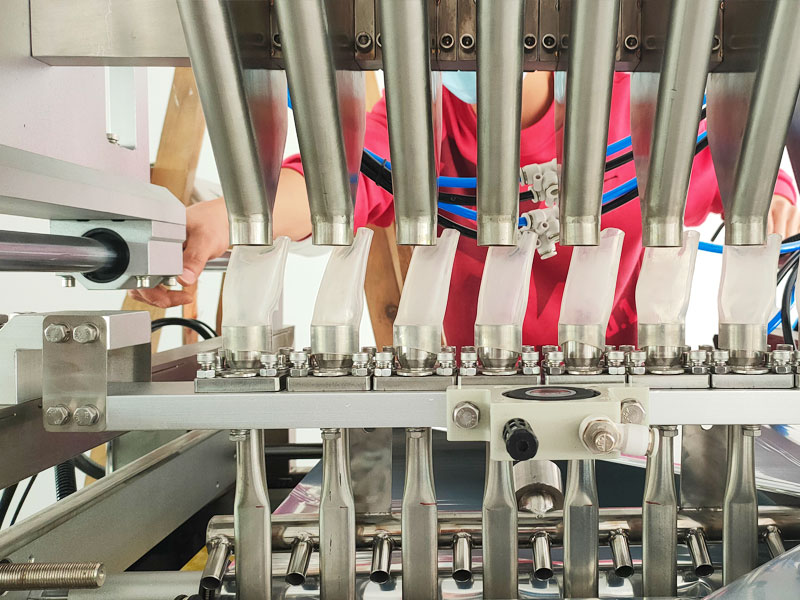

Measuring cup type measuring system (1)

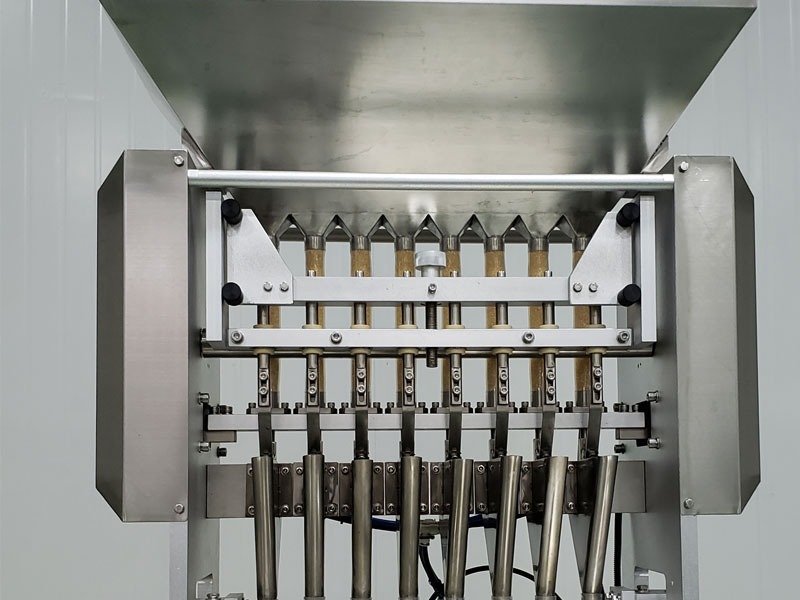

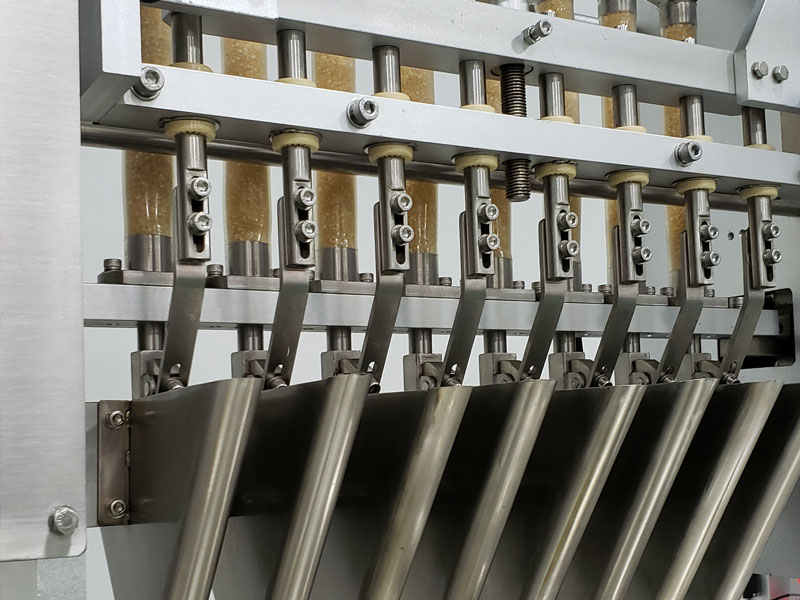

Measuring cup system

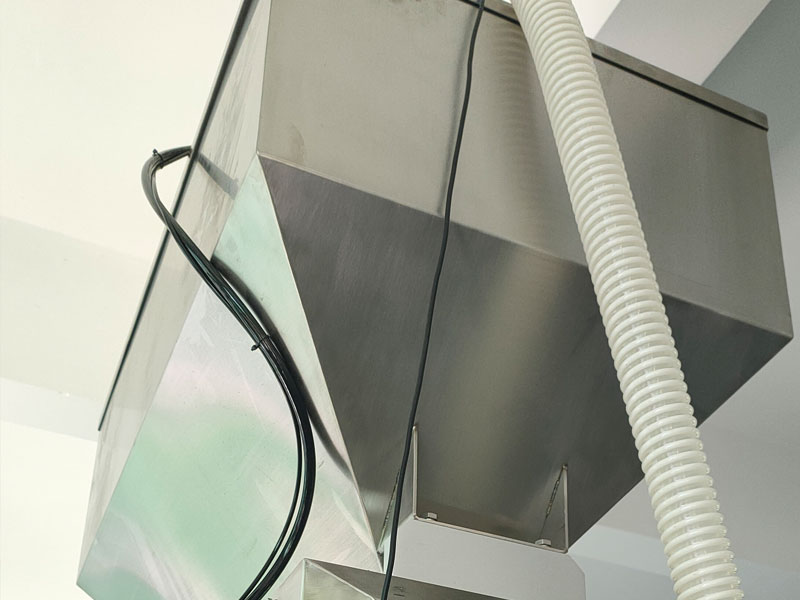

Bucket

Bucket and measuring cup metering system

Machine video introduction

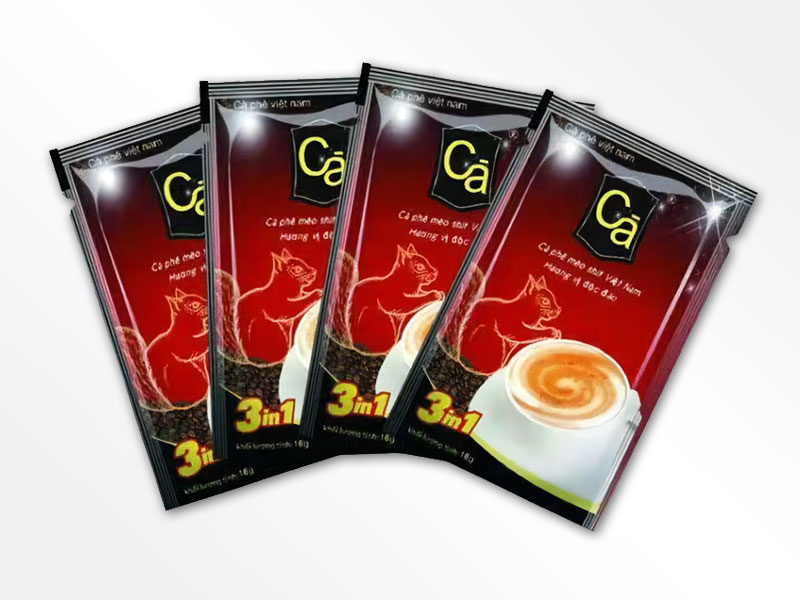

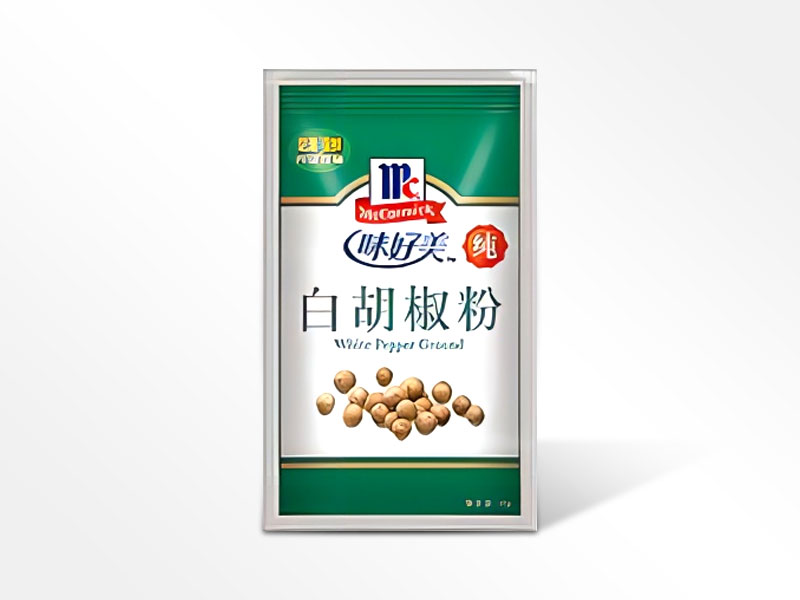

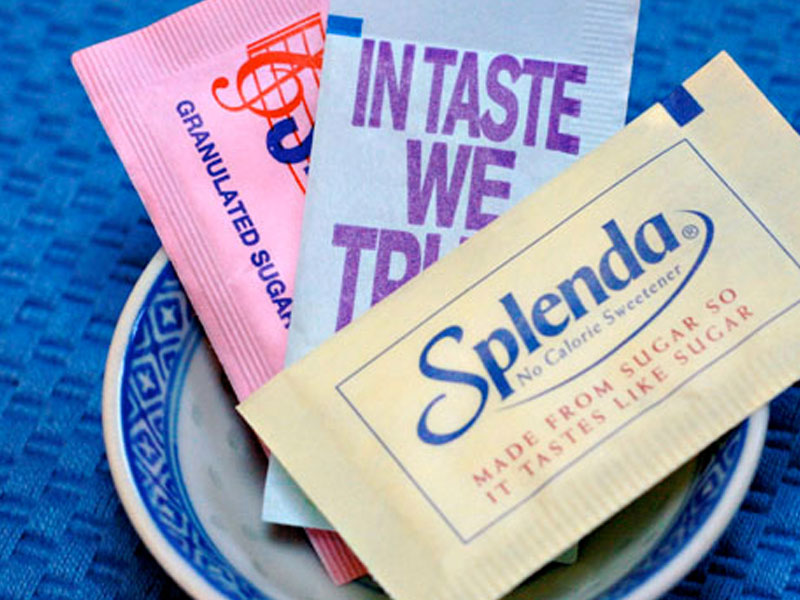

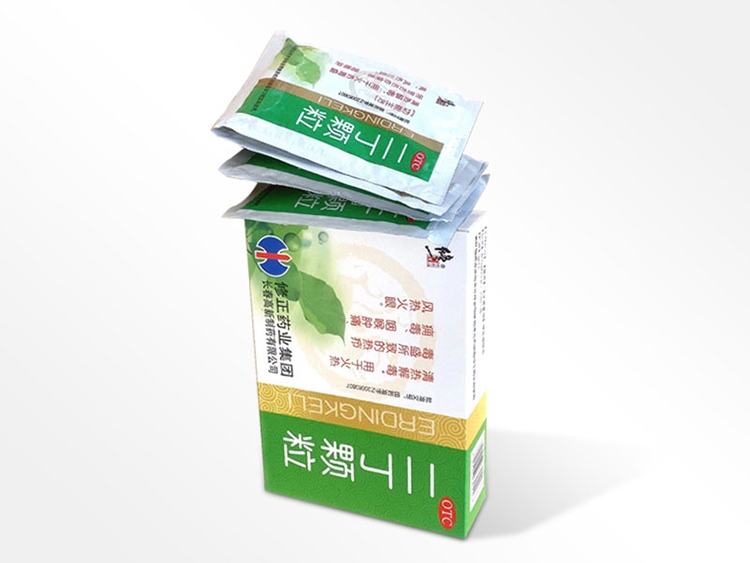

Effect of packaging sample bag
